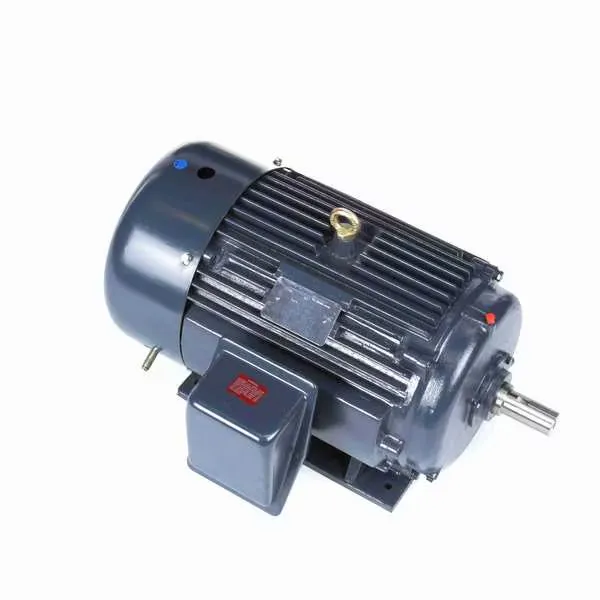

HHI30-36-286TS Hyundai
Motor 30HP 3600RPM 286TS 3PH
- Phase: 3
- Hertz: 60 HZ
- Enclosure: TEFC
- HP: 30
- Pole: 2
- RPM: 3600
- Frame: 286TS
- Full Load Amps: 67.6 / 33.8 A USABLE ON 208 V AT 74.8 A
- Weight: 410 lbs.
- Nema Design: B
- Duty: S1 / CONTINUOUS
- Insulation Class: F CLASS N VARNISH
- Ambient Teperature: 40° C AT 1.15 SF / 65° C AT 1.0 SF
- Service Factor: 1.15 SF AT 40° C / 1.0 SF AT 65° C
- Ingress Protection: IP55
- Frame Material: CAST IRON
